WORKING WITH ICEYE SAR DATA IN SNAP

Pre-processing, Georeferencing and exporting file for GIS platform from ICEYE high resolution data with the Sentinel Application Platform (SNAP).

In this session of ICEYE data tutorial, we will go through some simple steps to georeference and export the data we downloaded for use on other GIS platforms.

SNAP SETUP

1. SNAP 9.0.0

Recommendation: If you have SNAP already installed with the old version (v.8.0 or older), please get it updated with the latest version.




2.Download free samples of ICEYE SAR data (SLC and GRD files)


ICEYE SLC DATA PRE-PROCESSING

GET STARTED


1. Open ICEYE data on SNAP by clicking Open product then browse to the place the ICEYE example dataset is stored (H5 format)

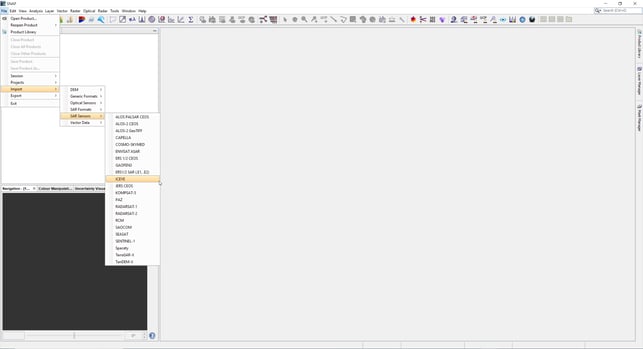

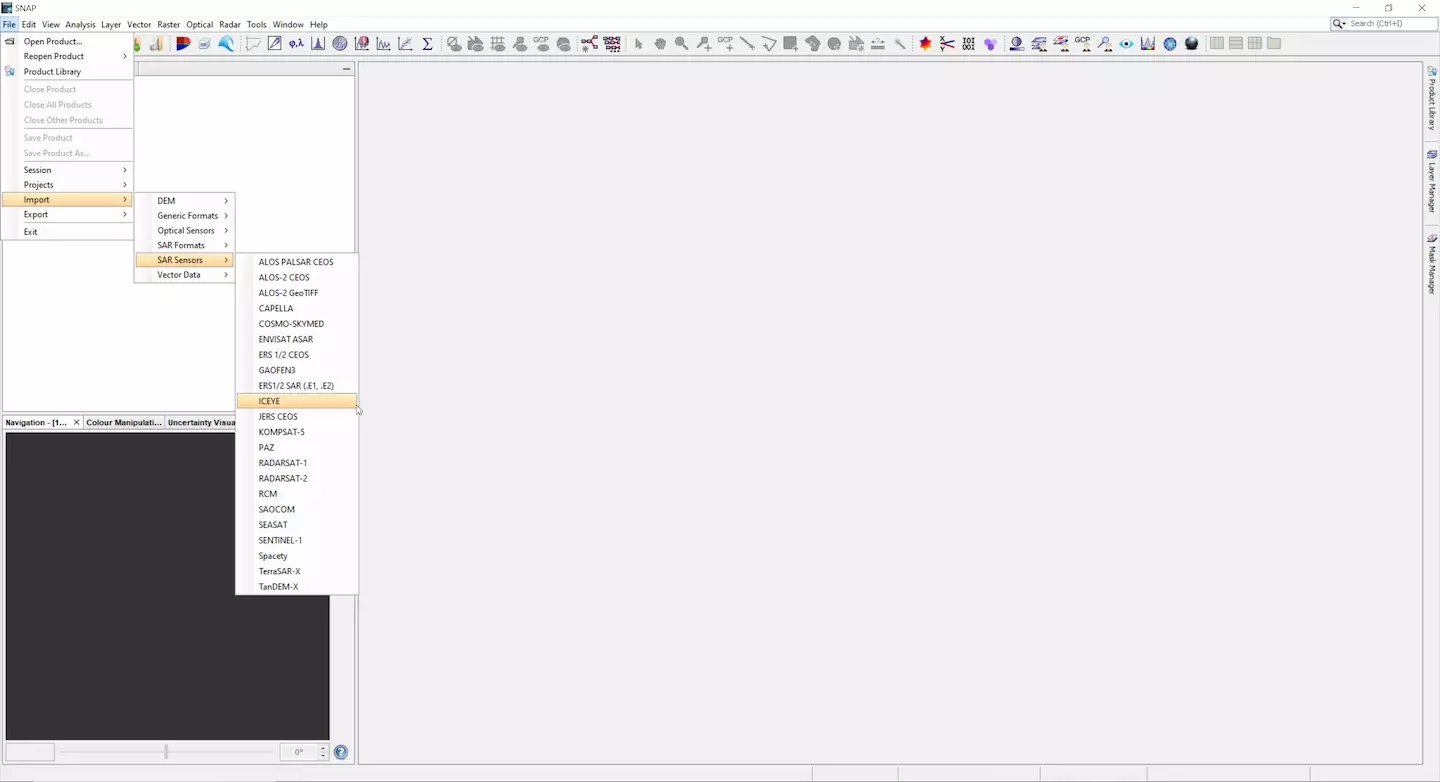

2. Import ICEYE’s sensors: Import > SAR sensors > ICEYE

SNAP_SLC_01_Import_SAR_Sensors_ICEYE

RADIOMETRIC CALIBRATION

1. Radiometric calibration is applied to ensure quantitative comparisons between acquisitions. After calibration the pixel values represent the backscatter of the reflecting surface.

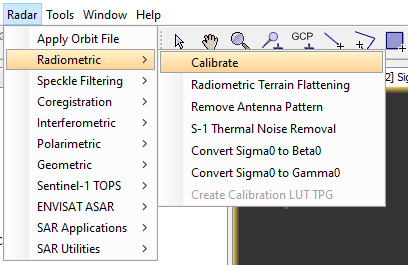

To run the Radiometric calibration, click Radar > Radiometric > Calibrate

Radiometric-Calibration-1

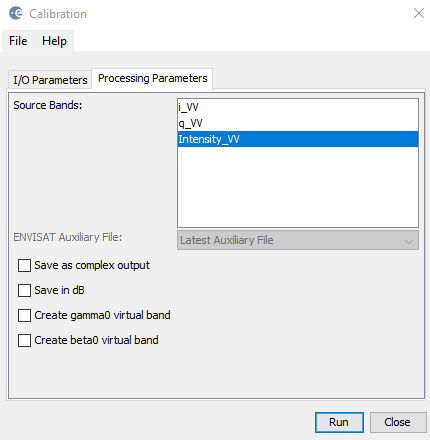

2. Commonly with SAR, dB values are used. Linear values are fine for visual inspection.
You can leave all options unchecked to receive calibrated linear values. Click Run to process.



Radiometric-Calibration-2



MULTILOOKING

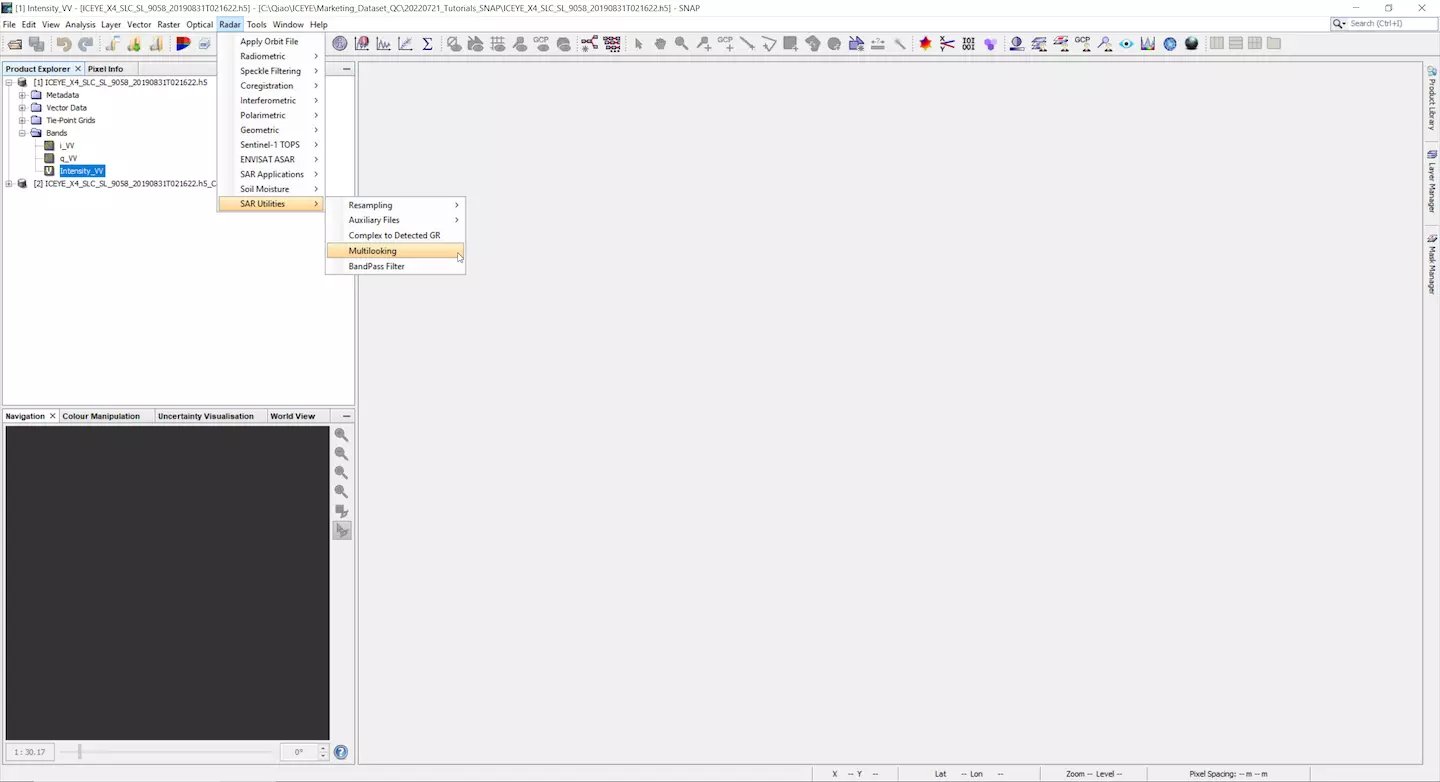

1. Ensure you choose Intensity_VV from the Bands drop-down list in the Product Explorer panel. Then click Radar > SAR Utilities > Multilooking



SNAP_SLC_03_Multilooking_Menu

2. Select again Intesity_VV as Source bands from the Processing Parameters tab and specify the number of looks to be applied for the multilooking. You can also add optionally, the bigger the number of looks the coarse the resolution will become.

Then click Run and wait for the software to process.

SNAP_SLC_05_Terrain_Correction_Processing_Parameters_wo_Masking_Out

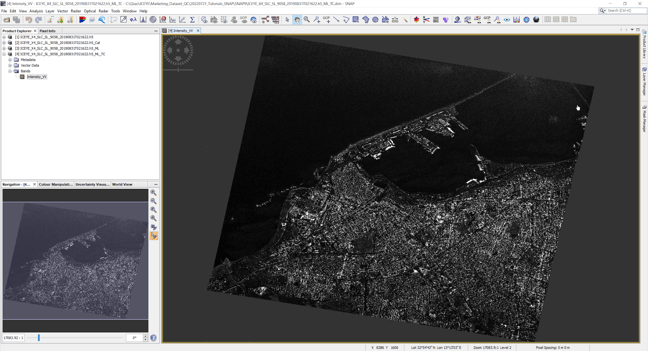

3. ICEYE SLC data after Multilooking processed

SNAP_SLC_05_Terrain_Correction_Results



GEOCODING (GEOREFERENCING)

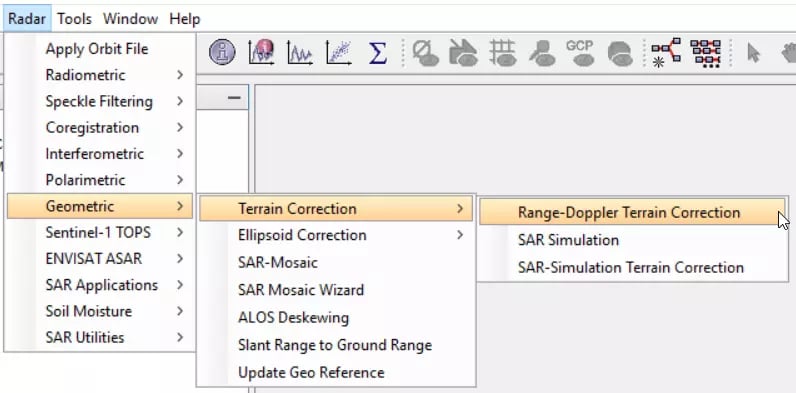

1. To georefence the image, we have to correct the image with Terrain correction. We choose this in the menu Radar > Geometric and then click the Range-Doppler Terrain Correction:

SNAP_SLC_05_Terrain_Correction_Menu

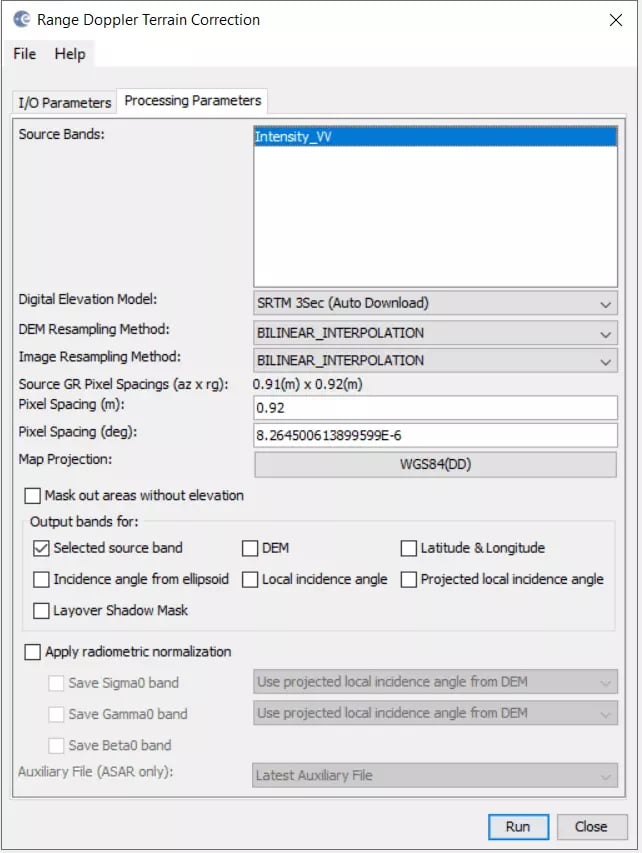

2. When the following menu opens, you can leave the default projection system (Map projections) to be set as WGS84 (DD) in the Processing parameters tab. You can also select any projection system that fits your AOI for certain. Then click Run to start the process.



SNAP_GRD_03_Terrain_Correction_Parameters

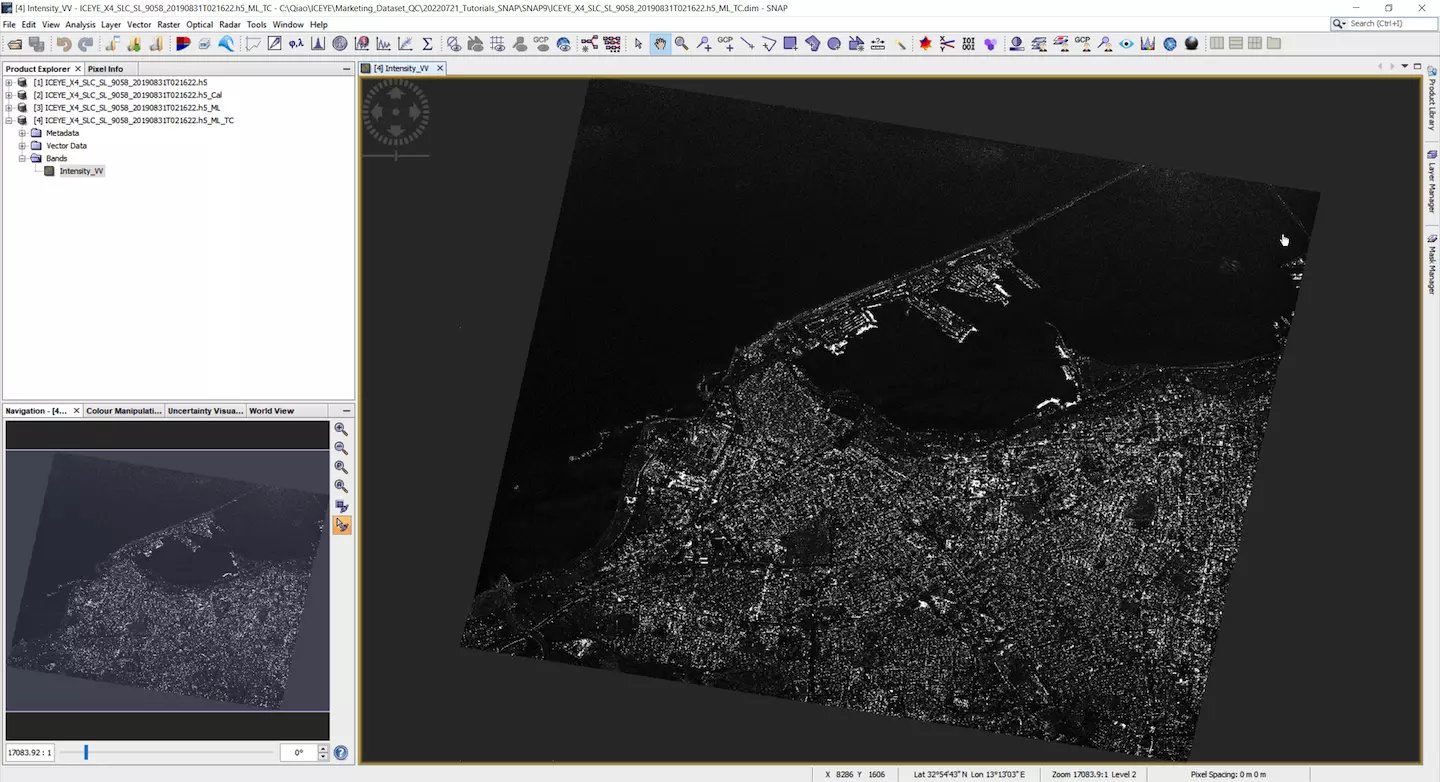

3. ICEYE Spotlight SLC data after Geocoded

SNAP_SLC_05_Terrain_Correction_Results-1





ICEYE GRD DATA PRE-PROCESSING

GET STARTED



1. Open ICEYE data on SNAP by clicking Open product then browse to the place the ICEYE example dataset is stored (TIFF format)

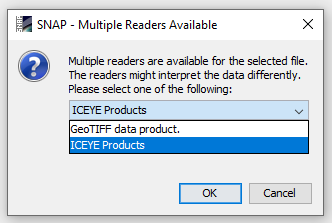

2. Choose ICEYE Products when asked

iceye-grd-open



SPECKLE FILTERING FOR NOISE REMOVAL

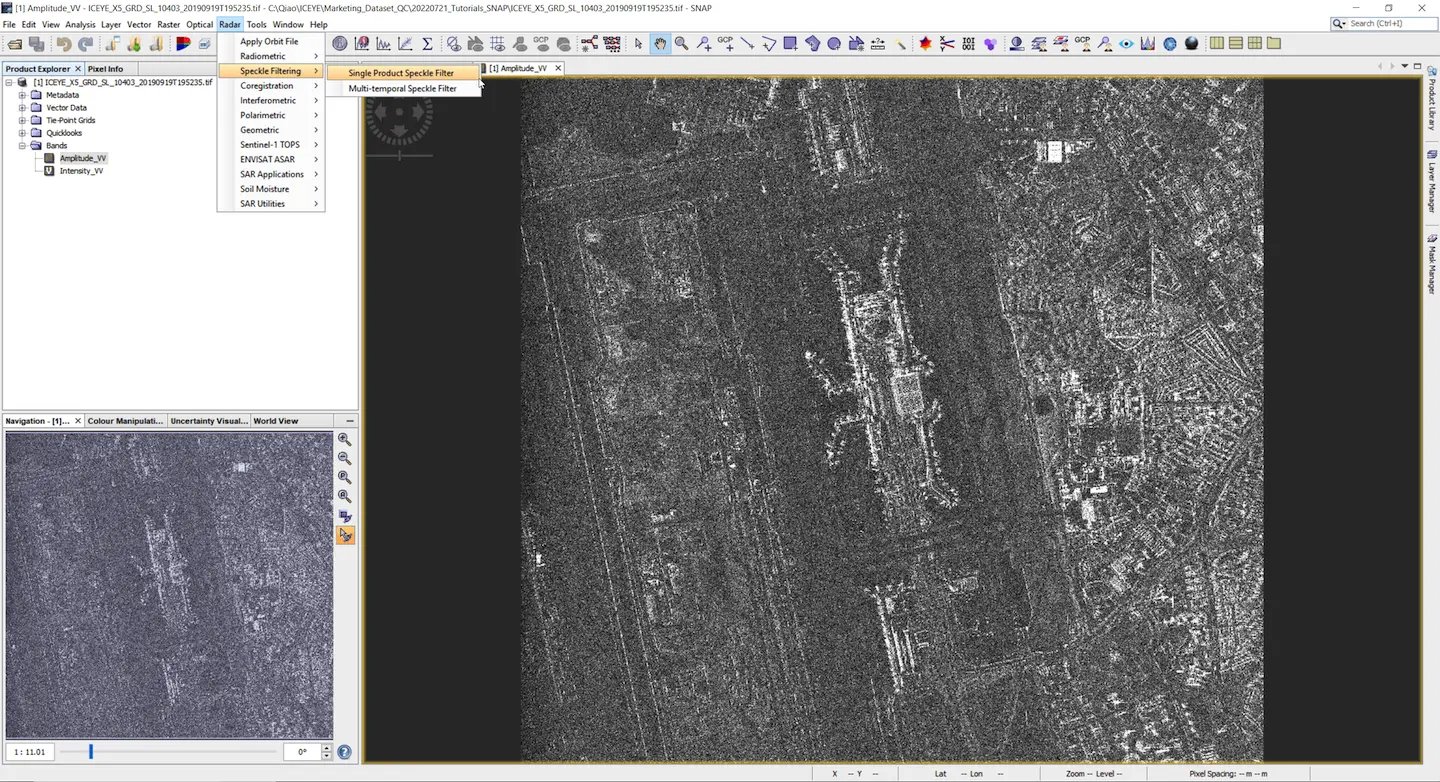

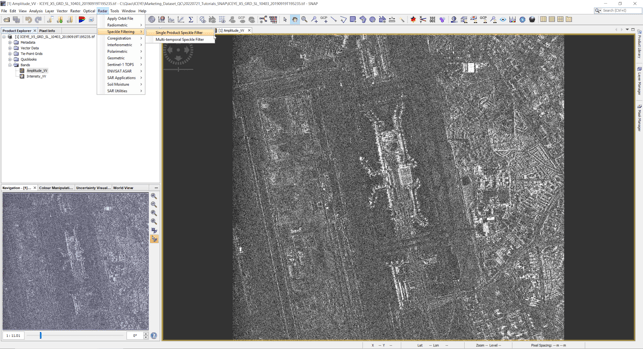

1. Ensure you double click Amplitude_VV from the Bands drop-down list in the Product Explorer panel. Then click Radar > Speckle filtering > Single Product Speckle Filter

SNAP_GRD_02_Speckle_Filtering_Menu

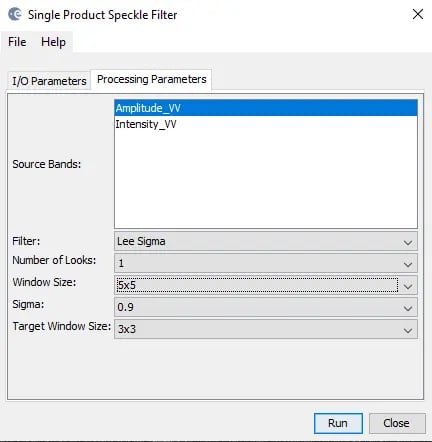

2. Lee-sigma is widely used and perform best compared to other filters. From the Processing Parameters tab, choose Lee Sigma from the Filter field with the following values to run the noise removal process. Then click Run and wait for the software to process.

iceye-grd-speckle-filtering-noise-removal-2

3. ICEYE spotlight GRD data after Speckle noise removal processed

SNAP_GRD_02_Speckle_Filtering_Results

GEOCODING (GEOREFERENCING)

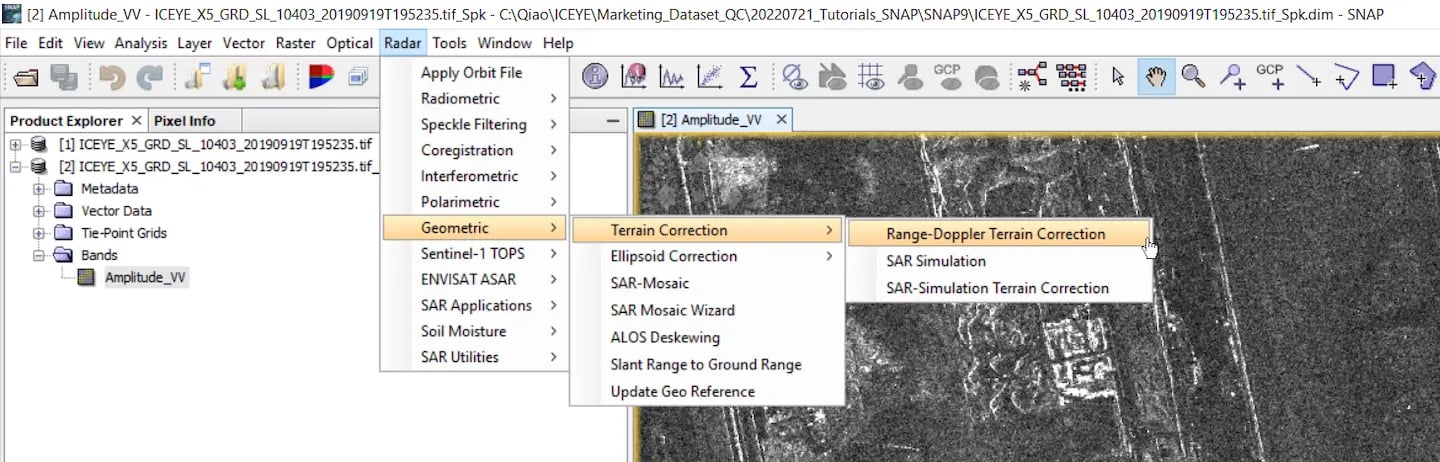

1. To georefence the image, we have to correct the image with Terrain correction. We choose this in the menu Radar > Geometric and then click the Range-Doppler Terrain Correction:

SNAP_GRD_03_Terrain_Correction_Menu-1

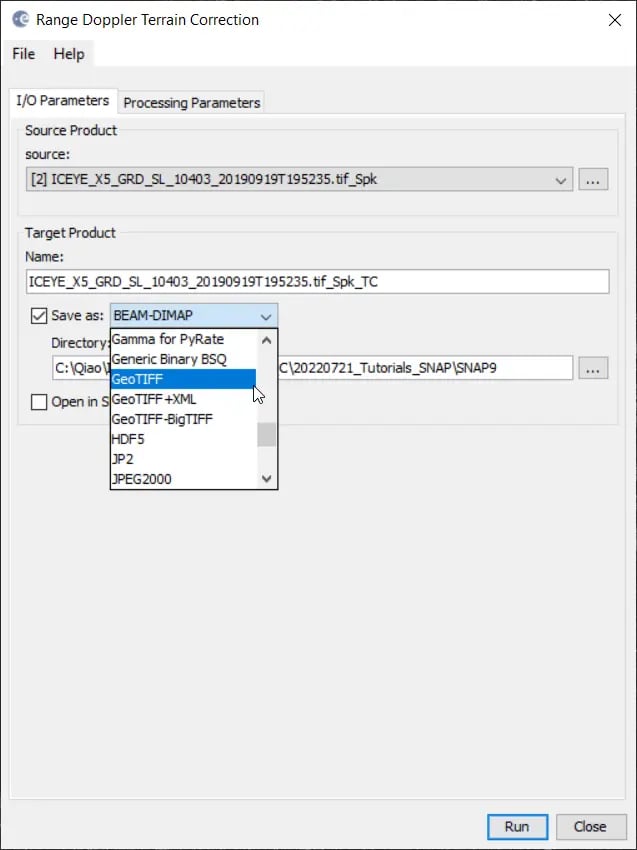

2. When the following menu opens, you can leave the default projection system (Map projections) to be set as WGS84 (DD) in the Processing parameters tab. You can also select any projection system that fits your AOI for certain.

Then click Run to start the process.

SNAP_GRD_03_Terrain_Correction_Parameters-1



SNAP_GRD_03_Terrain_Correction_Parameters_GeoTIFF

3. ICEYE Spotlight GRD data after Geocoded

SNAP_GRD_03_Terrain_Correction_Results-1



USEFUL TIPS

SUBSET - OPTIONAL FOR REDUCING COMPUTATIONAL TIME

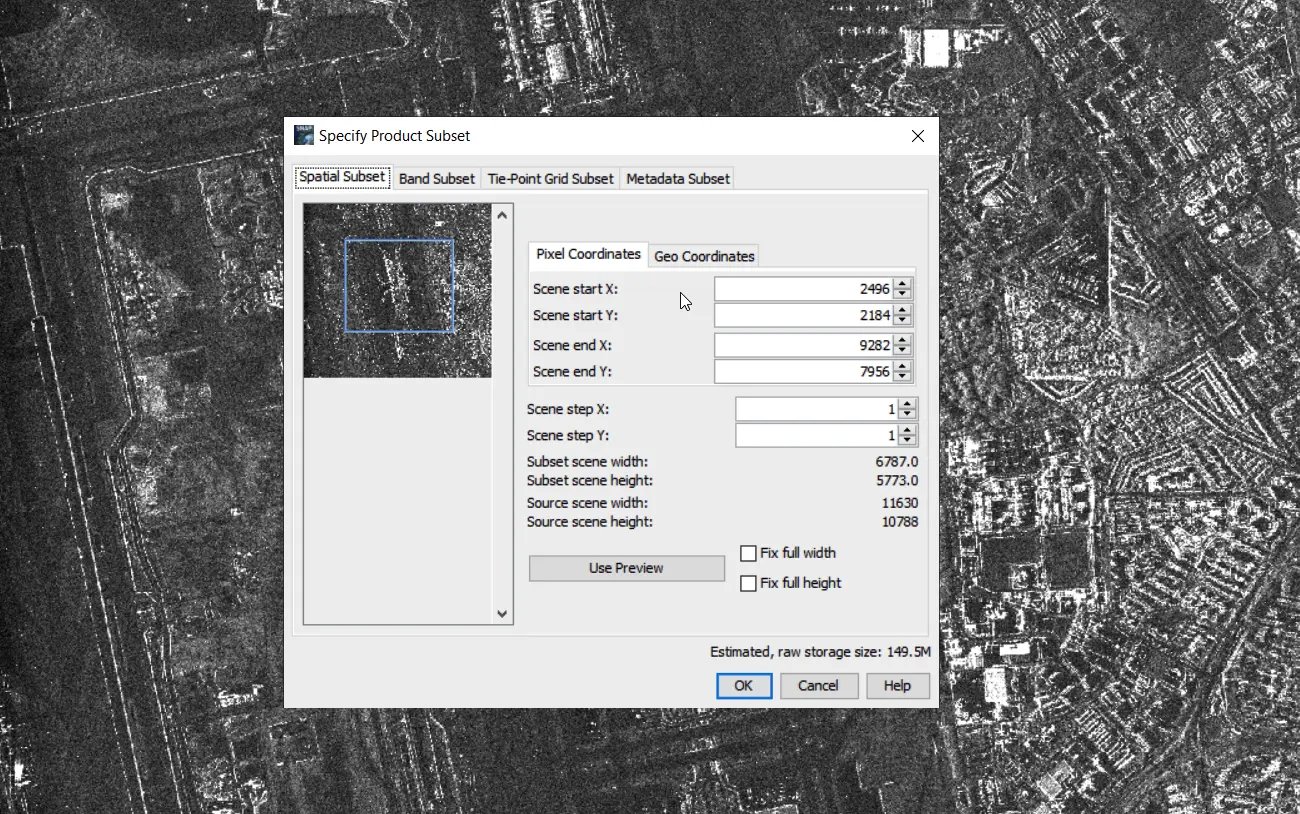

Point to Raster then select Subset. In the Spatial Subset tab. To specify Product Subset, you can set the value from Pixel Coordinates or Geo Coordinates to have your area of interest covered

SNAP_GRD_05_Raster_Subset_Spk

EXPORT (FOR USING IN GIS PLATFORMS)

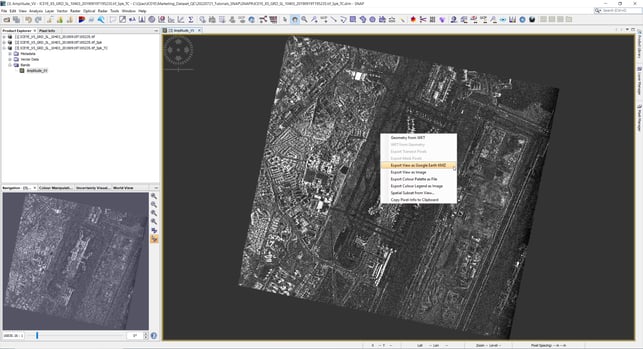

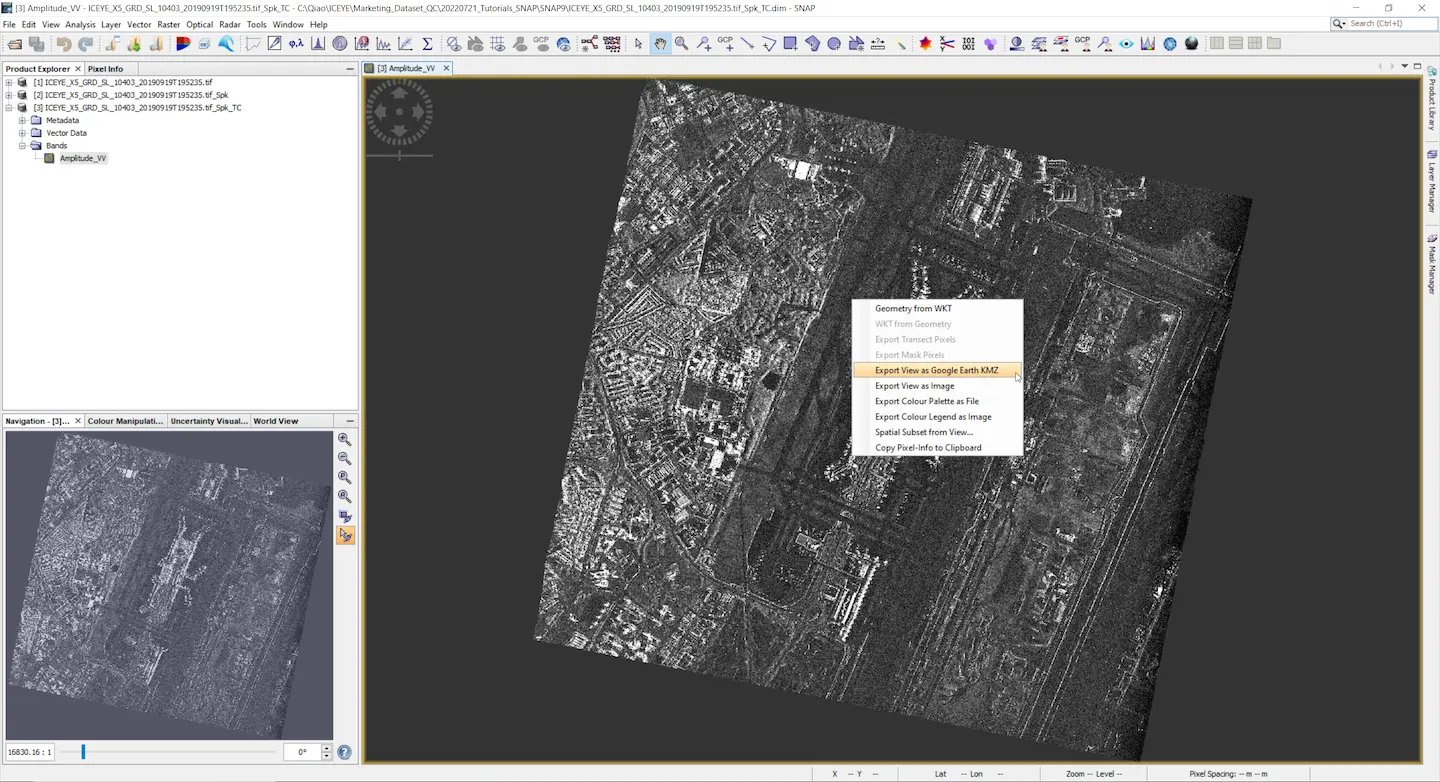

Export to Google Earth KMZ by right clicking on the image window and choose the expected option.

SNAP_GRD_04_Export_View_KMZ

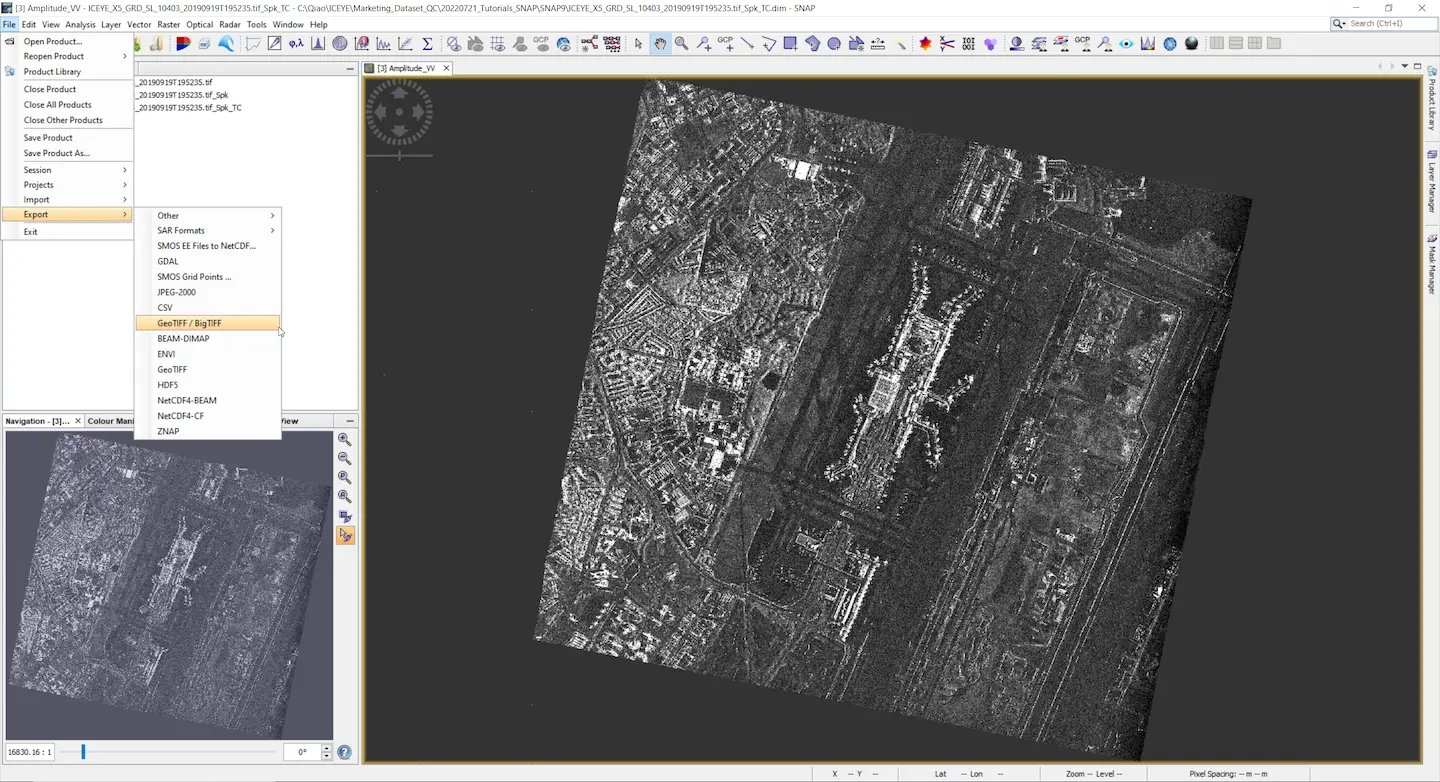

You can also export to GeoTIFF format for inserting the product into GIS platform.

SNAP_GRD_04_Export_GeoTIFF_BigTIFF
